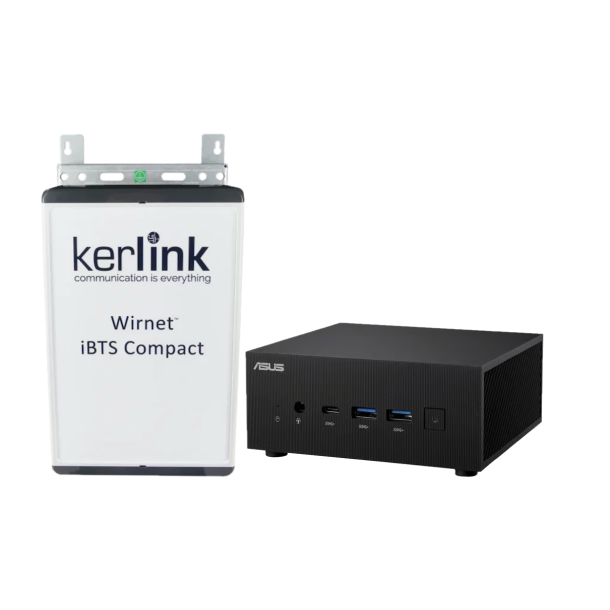

This solution combines a robust outdoor LoRaWAN gateway with a pre-installed server running the latest version of Chirpstack, the most advanced and user-friendly open-source LoRaWAN server available today. Chirpstack runs on a Linux-based platform that supports custom applications and filters. No license is required, which keeps installation and maintenance costs at a minimum. It integrates easily into existing IP infrastructure.
The outdoor gateway is designed for long-term field deployment and supports future LoRaWAN standards such as geolocation and LR-FHSS. It offers flexible backhaul options, including connectivity over GPRS, EDGE, HSPA, LTE (for Europe/APAC or Americas bands), and Ethernet.
Gateway Specifications
-
16-channel LoRa RF module, expandable to 2–4 modules (up to 64 channels)
-
Supported frequency bands: 863–873 MHz, 902–928 MHz, 915–928 MHz
-
Configurable antenna setups: single omnidirectional, dual polarization, tri-sectorization
-
Supports LoRa geolocation using RSSI and Time Difference of Arrival (TDOA)
-
Software Defined Radio
-
Supports both 2.4 GHz and 868 MHz frequency bands
The server hardware is compact yet powerful, based on the ASUS MiniPC PN52 – BBR959XD, making it ideal for industrial or enterprise deployments.
Server Hardware
-
Processor: AMD Ryzen 5 5600H – 3.3 GHz
-
GPU: AMD Radeon – 1800 MHz
-
RAM: 16 GB DDR4 3200MT/s
-
Storage: 1 TB SSD
Chirpstack offers a wide range of integration options for pushing data to external platforms:
Integration Options
-
HTTP
-
MQTT
-
AWS SNS
-
Azure Service Bus
-
Google Cloud Pub/Sub
-
IFTTT
-
InfluxDB
-
myDevices
-
PilotThings
-
Semtech LoRa Cloud
-
ThingsBoard
5 hours of technical support included in the price
